Outboard Specifications



Firestone   Model 133-4-1845

Model Code Serial Year Made HP & RPM Cyl
133-4-1845   1954 10 @ 4200 2
Ignition Type Alternator Bore & Stroke Disp Weight
Magneto No 2 11/64 x 2 14.82 cu in 59 lbs
Orig Color Model Markings Starter Type Prop Dia. & Pitch Prop to Shaft
Light Green w/Red Stripe Firestone 10 Recoil Start 2 Blade  7 1/8 x 10 Shear Pin
Gas Tank Cooling Point Gap Orig Spark Plug Plug Gap
6 Gal Sep Tank WC .020 Champion H10J  N4 .035
Orig Oil Original Oil Mix Shaft Length Full-Shift Lower Unit Lube
SAE 30 1/2 Pt  per  Gal   N1 Standard 15" Shift APG 90

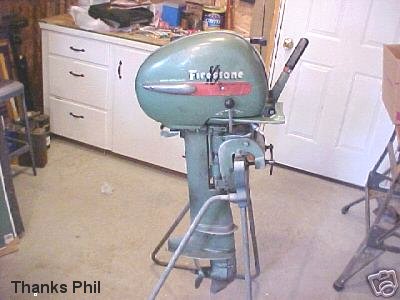

Picture Description Original Selling Price
Yes   269.95 East     274.95 West Coast



Special Notes




Key Codes
AC - Complete Motor is Air Cooled
A - Aluminum
B - Bronze
ELW - Exhaust Leg is Water Cooled
F - Forward Gear
H - Hood (Motor Cover)
L - Motor Leg
LS - Long Shaft Motor
N - Neutral Gear
PHA - Power Head is Air Cooled
R - Reverse Gear
SC - Slip Clutch
SS - Stainless Steel
WC - Complete Motor is Water Cooled



Notes:
N1 - See Oil Mix Page for Alternative Mix with Current Oils
N2 - See Gear Case Oil Page for Alternative Mix with Current Oils
N3 - See Power Trim & Tilt Oil Page for Alternative Mix with Current Oils
N4 - See Spark Plug Page for Current Replacement Interchange
N5 - If Engine has a Small Water Pick-up Tube (Engine has no Impeller)
